3535 - pneumatic - DIN

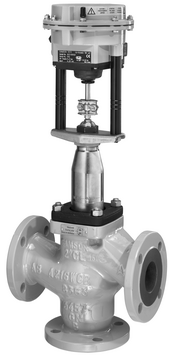

Globe valve
VALVE STYLE
Globe valve
USAGE
- Mixing or diverting service
- Low-pressure service
- Throttling service
VERSION
DIN
MEDIUM TEMPERATURE
-70
to 350 °C /
-94
to
662 °F
SUPPLY
Pneumatic
VALVE SIZE
DN 15
to
DN 80
PRESSURE RATING
PN 16
to
PN 25
LINING
without
Special features
- Consisting of three-way valve for heat transfer oil and actuator
- Stem sealed by metal bellows and packing
Accessories
- Type 2 N Strainer
- Type 2 NI Strainer
Options
- - - -
3535 - pneumatic - DIN can be combinated with the following actuations:
Special features:
- Consisting of two diaphragm cases, a rolling diaphragm, and internal springs
- Suitable for attachment to SAMSON Type 3214, Type 3260, and Series V2001 Valves
- Version with directly attached Type 3725 Positioner or prepared for the attachment of Series 3730 Positioner (15 or 30 mm rated travel)
- Actuated by 4 to 20 mA
Special features:
- Suitable for attachment to SAMSON Series V2001 Valves
- The actuators mainly consist of two diaphragm cases, a diaphragm, and internal springs. The actuator is connected to the valve bonnet using a yoke.
- 120 cm² – diaphragm cases made of die-cast aluminum
- 350 cm² – diaphragm cases made of sheet steel
Information
Support
DXF file from data sheet
- T 8135 [ZIP]
